Draw the ladder diagrams for the following logic functions: AND, NAND, OR, NOR.
Briefly describe the architecture of a PLC.
Briefly explain (i) Latch circuit, (ii) Delay-on Timers and (iii) Counters.
What is programmable logic controller? Draw the ladder diagram and the program instructions for the following logic functions: (i) AND, (ii) NAND and (iii) XOR.
Explain briefly (any two) of the following: (i) Optical Isolator, (ii) Latch circuit, and (iii) Cascaded timers.
Draw the ladder diagrams to represent AND, OR, NOR, NAND, XOR logic functions respectively.
Draw the functional block diagram of a PLC and explain the PLC architecture.
Why linearization is done? Linearize the nonlinear system z=x2+4xy+6y2z = x^2 + 4xy + 6y^2z=x2+4xy+6y2 in the region defined by 8≤x≤10,2≤y≤48 \le x \le 10, 2 \le y \le 48≤x≤10,2≤y≤4. Find the linearization error at point (10,4)(10, 4)(10,4).
Write down the selection criteria of a PLC.
Draw the ladder diagram and output diagram for the following logic gates: (i) AND (ii) OR (iii) NAND.
Measurement is an important subsystem of a mechatronics system – why? Discuss briefly.
What is PLC? Draw the ladder diagram and output diagram for the following logic gates: AND OR NAND NOR XOR.

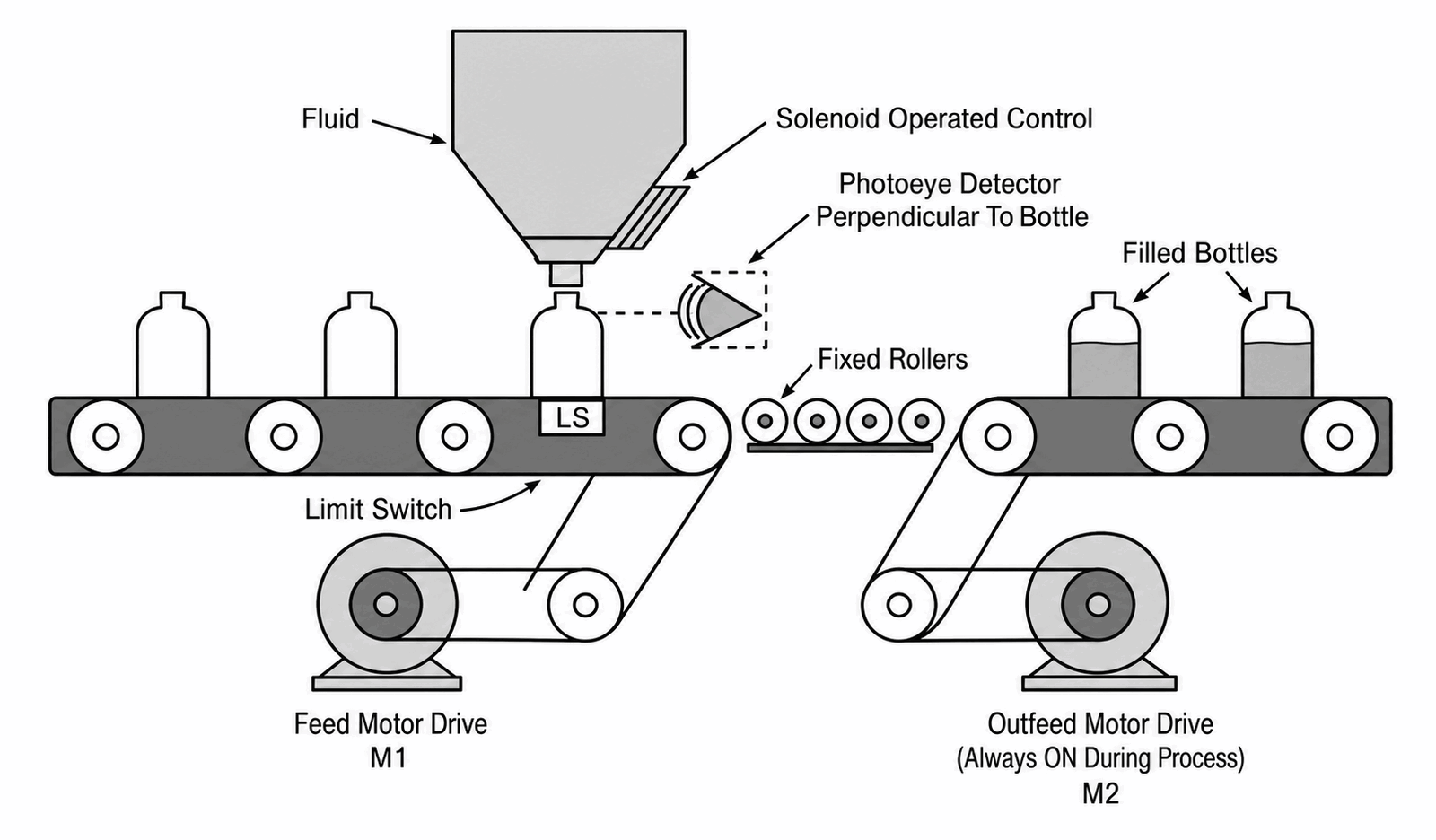

Consider a control system for a bottle filling system that detects the position of a bottle via a limit switch than waits for 0.5 sec and then fills the bottle until a photodetector detects the filled condition of the bottle. After the bottle is filled, the buzzer sounds and the control program will again wait for 0.7 sec, before moving to the next bottle. Until the limit switch signals, the feed motor M1 runs while there are fixed rollers which carry the filled bottle. Motor M2 keeps running after the process has been started. The diagram of the system is shown in Fig 8(b). Enlist the inputs and outputs of the system. Then construct the ladder diagram and explain it.
